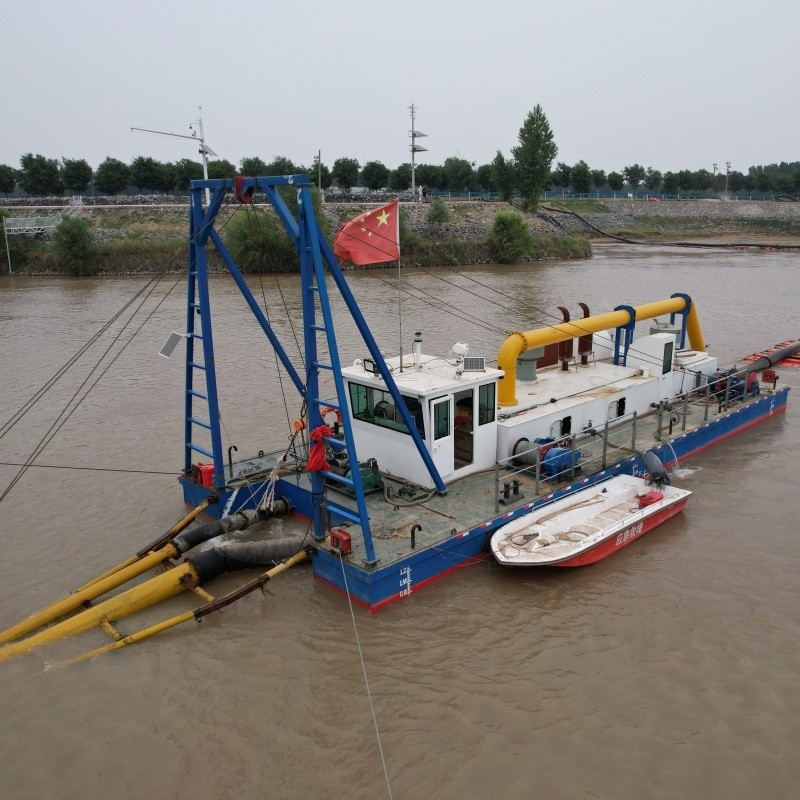

900m3/h flow rate jet suction dredger for small rivers and lakes
product description
A jet suction ship (also known as a jet suction sand pump or a jet suction sand pump) is a water dredging equipment that
uses high-pressure water jets to impact silt and then uses a sand suction pump to suck out the slurry. It is widely used in
river dredging, port dredging, reservoir sand mining, sea reclamation and other projects. Its core feature is the "one impact
and one suction" working mode, that is, the silt is dispersed by a high-pressure water gun, and then sucked and transported
to a designated location by a sand suction pump.
product parameters
|
Model
|
Capacity
|
Water flow
|
Dredging depth
|
Discharge distance
|
Main engine
|
Auxiliary engine
|
Fuel consumption
|
Dimension(L*W*H)
|
|
YSJSD150
|
40-50m3/h
|
250m3/h
|
6m
|
500m
|
120KW
|
/
|
18L/H
|
10*3.8*1
|
|
YSJSD200
|
80-100m3/h
|
500m3/h
|
8m
|
500m
|
176KW
|
60KW
|
40L/H
|
14*4.5*1.2m
|
|
YSJSD250
|
150-180m3/h
|
900m3/h
|
10m
|
800m
|
294KW
|
88KW
|
60L/H
|
17*5*1.2m
|
|
YSJSD300
|
200-250m3/h
|
1400m3/h
|
10m
|
1000m
|
456KW
|
110KW
|
80L/H
|
20*6*1.5m
|
|
YSJSD350
|
300-400m3/h
|
2000m3/h
|
12m
|
1500m
|
735KW
|
220KW
|
120L/H
|
24*6.6*1.6m
|
|
YSJSD400
|
400-500m3/h
|
2600m3/h
|
14m
|
1500m
|
882KW
|
330KW
|
150L/H
|
24*7.2*1.8m
|
|
YSJSD450
|
500-600m3/h
|
3000m3/h
|
14m
|
1500m
|
1103KW
|
406KW
|
200L/H
|
26*7.6*2m
|
|
YSJSD500
|
600-700m3/h
|
3800m3/h
|
14m
|
1500m
|
1250KW
|
456KW
|
240L/H
|
26*7.6*2m
|
The above technical parameters are for reference only,specific device configuration depends on the conditions of each
project,customer and technical requirements.
Workflow
High-pressure water sand flushing: High-pressure water guns impact the riverbed to loosen the sand and form mud
Sand suction pump suction: The sand suction pump sucks the mud into the pipeline
Mud transportation: Transport to the shore, barge or reclamation area through pipelines
Application
River/port dredging: remove silt to ensure smooth waterways
Reservoir desilting: prevent siltation and extend the life of reservoirs
Sand mining: mining of sand for construction
Land reclamation: land reclamation by filling, such as coastal development zone construction
